CP PLUS
2MP Full HD WDR Network Box Camera
Specifications
| Sensor Resolution Mp | 2 |
| Camera Type | Box |
| Image Sensor | 1/2.9 2MP PS CMOS Image Sensor |
| Effective Pixels | 1920 × 1080 |
| Minimum Illumination | Colour 0.0021 Lux @F1.6; Night 0.00021Lux @F1.6 |
| Lens Mount | C/CS |
| Lens Type | C/CS Mount Lens |
| Wdr | WDR(120dB) |
| Audio | Built-in Mic |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Storage | Micro SD Card |
| Poe | true |

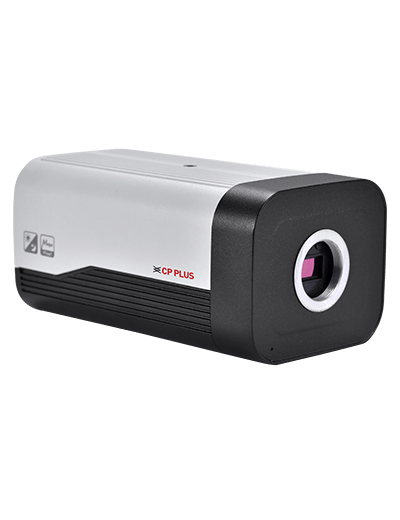

The 2MP Full HD WDR Network Box Camera (model CP-UNC-BE21C-VMDS-Q) is a 2MP network camera from CP PLUS in the box form factor.
What to consider
As a buyer, focus on the imaging hardware, lens and night coverage, plus networking, storage, audio and environmental protection. Check the specification table above to match the camera to the scene, mounting location and recording system you need.
Platform notes
- Powered over Ethernet: use a PoE switch or an NVR with PoE ports, or a PoE injector.
- Connects over the network and needs a compatible NVR or recording software; match the number of NVR channels to the number of cameras.
- Higher resolution means more bandwidth and storage, so size the NVR disks accordingly.
Good fit for
- Projects that want to choose their own C/CS lens for a specific field of view.
- Installs where the camera is housed or placed in a sheltered location.
Not ideal for
- Open outdoor use without a suitable housing, since no weatherproof rating is listed.
- Sites with no PoE switch or NVR PoE ports, unless a separate power supply is arranged.
Figures are indicative.
For retailers & quoting
- Always confirm live SKU specs, stock and pricing before finalising a purchase or quote.
