CP PLUS

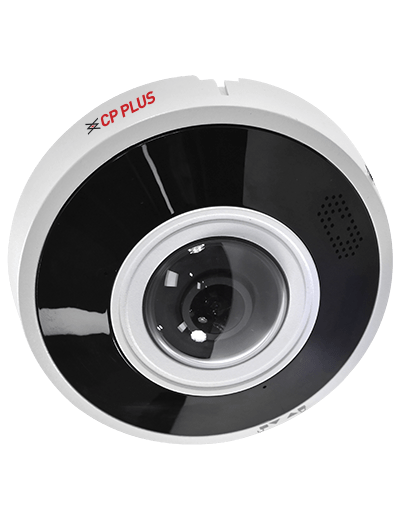

6MP Network IR Fisheye Camera
Specifications
| Sensor Resolution Mp | 6 |
| Camera Type | Fisheye |
| Image Sensor | 1/2.5 6MP PS CMOS Image Sensor |
| Effective Pixels | 2560 × 2560 |
| Lens | 1.68 mm Fixed-focal Lens |
| Stream Capability | Triple Stream |
| Wdr | WDR (120dB) |
| Audio | Built-in Mic |
| Storage | Micro SD Card |
| Poe | true |
| Weatherproof | IP67, IK10 |
The 6MP Network IR Fisheye Camera (model CP-UNC-EE61L2C-VMD-Q) is a 6MP network camera from CP PLUS in the fisheye form factor.
What to consider
As a buyer, focus on the imaging hardware, lens and night coverage, plus networking, storage, audio and environmental protection. Check the specification table above to match the camera to the scene, mounting location and recording system you need.
Platform notes
- Powered over Ethernet: use a PoE switch or an NVR with PoE ports, or a PoE injector.
- Connects over the network and needs a compatible NVR or recording software; match the number of NVR channels to the number of cameras.
- Higher resolution means more bandwidth and storage, so size the NVR disks accordingly.
Good fit for
- Wide-area coverage of rooms, halls and retail floors from a single ceiling point.
Not ideal for
- Sites that need to change the zoom after installation, because the lens is fixed.
- Long-range identification of faces or plates; a fisheye is for wide coverage, not distance detail.
- Sites with no PoE switch or NVR PoE ports, unless a separate power supply is arranged.
Figures are indicative.
