CP PLUS

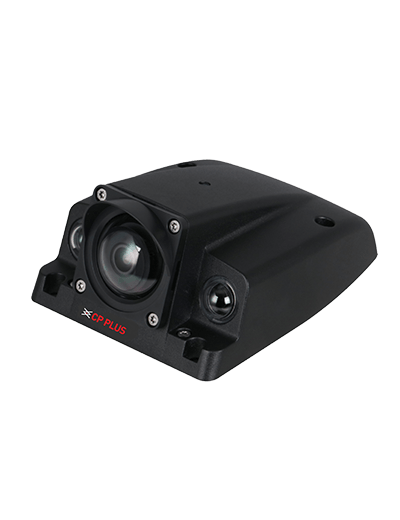

4MP Network IR Mobile Camera - 30 Mtr.
Specifications
| Sensor Resolution Mp | 4 |
| Camera Type | Mobile |
| Image Sensor | 1/2.8 4MP PS CMOS Image Sensor |
| Max Resolution | 2688 × 1520 |
| Minimum Illumination | 0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Max Frame Rate | 45 fps |
| Lens | 3.6mm fixed Lens |
| Ir Distance | 30 Mtr. |
| Wdr | WDR(120dB) |
| Stream Capability | Triple Stream |
| Storage | Micro SD Card |
| Poe | true |
| Weatherproof | IP67, IK10 |
The 4MP Network IR Mobile Camera - 30 Mtr. (model CP-UNC-ME41L3-MDJ-Q) is a 4MP network camera from CP PLUS in the mobile form factor.
What to consider
As a buyer, focus on the imaging hardware, lens and night coverage, plus networking, storage, audio and environmental protection. Check the specification table above to match the camera to the scene, mounting location and recording system you need.
Platform notes
- Powered over Ethernet: use a PoE switch or an NVR with PoE ports, or a PoE injector.
- Connects over the network and needs a compatible NVR or recording software; match the number of NVR channels to the number of cameras.
- Higher resolution means more bandwidth and storage, so size the NVR disks accordingly.
Good fit for
- Vehicle and other mobile deployments, as the product is positioned by CP PLUS.
Not ideal for
- Sites that need to change the zoom after installation, because the lens is fixed.
- Audio capture, as no built-in microphone is listed for this model.
- Sites with no PoE switch or NVR PoE ports, unless a separate power supply is arranged.
Figures are indicative.
For retailers & quoting
- Always confirm live SKU specs, stock and pricing before finalising a purchase or quote.
