Mono Perc Halfcut DCR Solar Panel LUM 24540M BI-TS
solar-backup

Mono Perc Halfcut DCR Solar Panel LUM 24540M BI-TS
Retail MRP ₹25,000

Quotes you receive through Monomerce are at or below this MRP, even after GST.

Specifications
Panel Type Mono Perc Half Cut DCR Panels
Peak Power Wp 540
Technology Mono PERC Half Cut
Cells Premium A-Grade cells
Coating Anti-reflection coating
Voc V 49.4
Isc A 13.72
Vmp V 41.92
Imp A 12.89
Backsheet Transparent
Dimensions Mm 2278 x 1134 x 30
Weight Kg 28.3
Product Warranty 12 Years
Performance Warranty 25 Years
Performance Warranty Terms 2% degradation in year 1 and 0.55% annually from year 2 to 25
Certifications BIS, ALMM
Whats In Box 1N Solar Panel

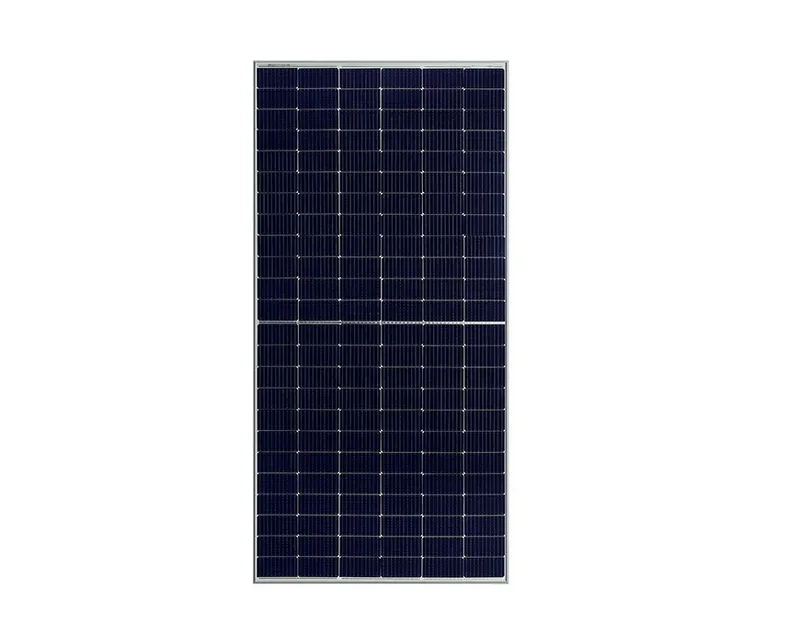

The Mono Perc Halfcut DCR Solar Panel LUM 24540M BI-TS is a 540 Wp mono PERC half-cut solar panel from Luminous. It uses Premium A-Grade cells with an anti-reflection coating and carries a 12-year product warranty and a 25-year linear performance warranty.

What to consider

Solar-panel selection is a system-design decision involving electrical characteristics, cell technology, physical footprint, environmental requirements, certification and warranty. Use the specification table above to make sure the panel is compatible with the inverter and mounting plan.

Platform notes

  • Check the panel’s Voc against the inverter or charge controller’s maximum input voltage when sizing strings, including cold-weather correction.
  • Confirm the string current (Isc / Imp) is within the inverter’s MPPT input limits.
  • At 28.3 kg and 2278 x 1134 x 30 mm, check that the mounting structure and roof can take the load.
  • DCR status matters for subsidy or tender-linked projects; confirm the current rules before quoting.

Good fit for

  • Rooftop and general-purpose installs that use standard mono PERC half-cut modules.
  • Projects that need DCR modules.

Not ideal for

  • Installs with limited roof load capacity or space, since each panel is large (2278 x 1134 mm).

Figures are indicative; always confirm live SKU specs, stock and pricing before quoting.

For retailers & quoting

  • Confirm live stock, current pricing and exact SKU specifications before quoting.
