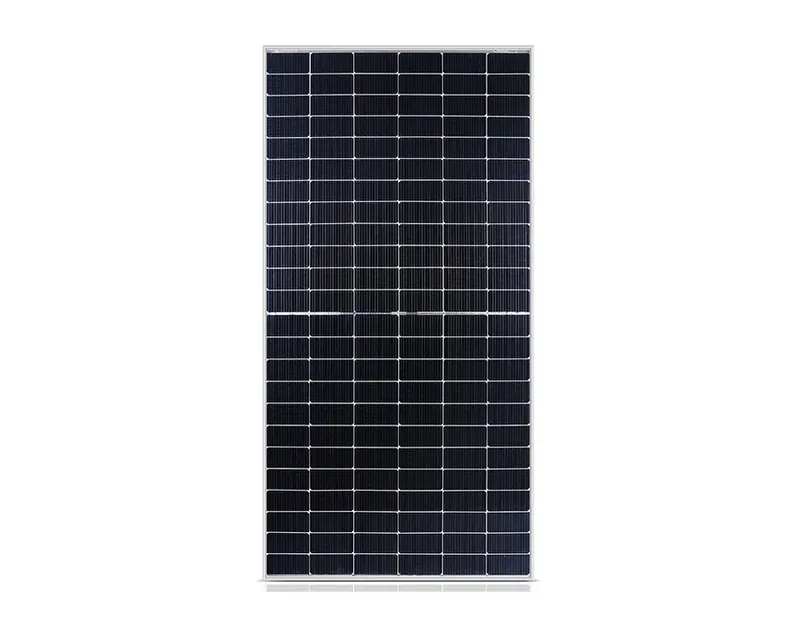

Solar Panel LUM 24590T144 BI-TS (Bifacial Non-DCR)
solar-backup

Solar Panel LUM 24590T144 BI-TS (Bifacial Non-DCR)
Retail MRP ₹21,200

Quotes you receive through Monomerce are at or below this MRP, even after GST.

Specifications
Panel Type Topcon Bifacial Non-DCR
Peak Power Wp 590
Technology TOPCon Bifacial
Cells Grade A cells
Coating Anti-reflection coating
Voc V 51.86
Isc A 14.49
Vmp V 42.88
Imp A 13.76
Backsheet Transparent Backsheet
Dimensions Mm 2278 x 1134 x 30
Weight Kg 28.8
Bifacial true
Pid Free true
Product Warranty 12 Years
Performance Warranty 30 Years
Performance Warranty Terms 1% degradation in year 1 and 0.45% annually from year 2 to 30
Certifications BIS, ALMM
Whats In Box 1N Solar Panel

The Solar Panel LUM 24590T144 BI-TS (Bifacial Non-DCR) is a 590 Wp TOPCon bifacial solar panel from Luminous. It uses Grade A cells with an anti-reflection coating and carries a 12-year product warranty and a 30-year linear performance warranty.

What to consider

Solar-panel selection is a system-design decision involving electrical characteristics, cell technology, physical footprint, environmental requirements, certification and warranty. Use the specification table above to make sure the panel is compatible with the inverter and mounting plan.

Platform notes

  • Check the panel’s Voc against the inverter or charge controller’s maximum input voltage when sizing strings, including cold-weather correction.
  • Confirm the string current (Isc / Imp) is within the inverter’s MPPT input limits.
  • At 28.8 kg and 2278 x 1134 x 30 mm, check that the mounting structure and roof can take the load.
  • Rear-side gain depends on mounting height, tilt and ground reflectance, so results vary by site.
  • Non-DCR panels may not qualify for projects that require DCR modules; check scheme and tender requirements.

Good fit for

  • Ground-mount and elevated installs over reflective surfaces where the rear side can contribute.
  • Commercial and utility-style projects that value higher output per panel.

Not ideal for

  • Installs with limited roof load capacity or space, since each panel is large (2278 x 1134 mm).
  • Low, flat roof mounts over dark surfaces, where the bifacial benefit is small.
  • Projects that require DCR modules.

Figures are indicative; always confirm live SKU specs, stock and pricing before quoting.

For retailers & quoting

  • Confirm live stock, current pricing and exact SKU specifications before quoting.
